- luminary HONOR GUARD ANTIVANDAL
USAGE:
- illumination of rooms extremely endangered by vandalism
- mounting into pedastrian underpasses and subways for cars, tunnels, underground
stations, platforms of railway stations, etc.
- convenient also for industrial and production rooms with high humidity and dustness
and material flying away, garages, stores, air-blast
boxes, etc.
- efficient design of the luminary enables variable inbuilding and connection
of luminaries

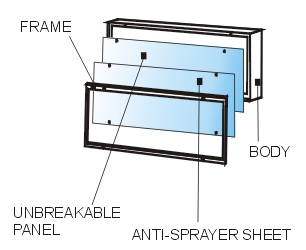

DESCRIPTION OF THE LUMINARY:
Body: a steel box with massive improvements on sides
Safety cover frame: stamping steel with rubber sealing (for reaching protection degree IP
65)
Finishing: powder coated white
Glazing: special unbreakable material with anti-sprayer sheet
Electro-equipment: rustless optical panel with electro-equipment for 2x23W
- 2x55W
| Safety elements: body
is connected to the base with three bolts M10. Safety cover is fixed with four screws, two of them have a safety bolt-heads. Anchor bolts are not accessible without demounting a safety cover. Glazing: Totally unbreakable - even brute force cannot cause damage or breakdown of the luminary. Protective anti-sprayer sheet preserves glazing against graffiti. |
Lighting-technical proposal:
A part of a delivery is a lightning-technical proposal for dislocation of luminaries according to requested
quality of illumination.
